*Brand New* Shuttle SV24 Aluminum All-in-one Barebone System



Shuttle Spacewalker SV24

Aluminum Barebones System

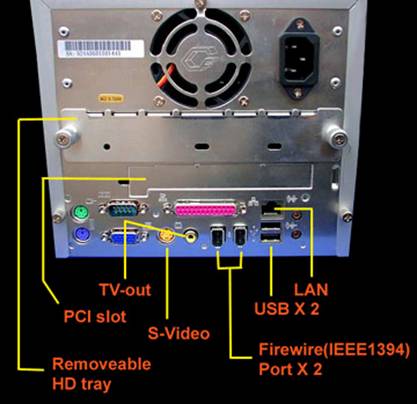

  • This barebone system comes with 4 (2 front & 2 back) USB, 2 Firewire (IEEE1394), on-board Sound, on-board Video, on-board 10/100 Ethernet port, 1 parell port, 1 serial port, ps2 mouse port,  ps2 keyboard port and one removeable HD tray. You can upgrade either video or sound by using the one and only PCI slot. You may also use the PCI slot for PCMCIA Adaptor for your wireless LAN need.  ( Dimensions: (L)270mm x (W) 190mm x (H)160mm ((L)10.7" x (W)7.5" x (H)6.3"))



All you need are CPU, Operating System, Harddrive, CD-ROM CD-RW or DVD, Floppy Drive, RAM, Mouse, Keyboard, and Monitor to have complete system.

















Specifications of the Shuttle SV-24 Mini Barebones System

How'd They Fit It All...



Processor
Socket 370
Intel FC-PGA Celeron with 66 MHz FSB
Intel FC-PGA Pentium III with 100/133 MHz FSB
Cryrix III Socket 370 CPU series

Chipset
VIA PL133 Chipset
VIA VT8604, North Bridge
Integrated S3 Savage 4 2D/3D Graphic Engine
VIA VT82C686B, South Bridge

Form Factor
Flex ATX
Size: 178mm x 190mm

Expansion Slot
1 x PCI

Memory
2 x DIMM
Support PC133 SDRAM

Flash EEPROM
Award PCI BIOS with PnP, Green and DMI Features



On board IDE Controller
Support PIO Mode 4 and DMA Mode 2
Supoort Ultra 33/66/100 Synchronous DMA mode

On board I/O Controller
1 x Floppy port
1 x Serial port (16550 fast UART compatible)
1 x Parallel port (SPP, EPP, ECP port)
2 x USB port
2 x 1394 connectors


RTL 8139 LAN Controller

Lucent 1394 Controller

Other features


Onboard S3 Savage 4 VGA
Chrontel CH7006C TV-out Controller

Onboard AC97
Onboard 10/100 Fast Ethernet
S-Video and Composite TV-out terminal

Wake-On-Ring & Alarm
KB/Mouse wake up

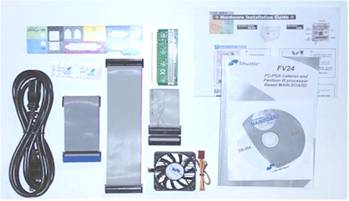

Along with the SV-24 Mini Barebones System, Shuttle includes the following items:  One 80-Pin IDE ATA 100 data cable, One 40-Pin IDE Data Cable, One Floppy Data Cable, One low-profile CPU Heat sink/Fan Assembly, One packet of thermal Grease, One ATX connector label, One PCI 90 degree riser card, One Quick Assembly Guide, One FV24 Motherboard Manual, One Drivers CD.







Payment may be by money order, personal check, or credit cards (via PayPal, eBay Payments [formerly Billpoint],  If payment is by personal check I reserve the right to wait three days before shipment. Sorry, no CODs.



Pay me securely with your Visa, MasterCard, Discover, or American Express card through PayPal!

VisaMasterCardDiscoverAmerican Express



It is my usual policy to cancel the bidder with negative feedbacks and I will contact the winning bidder via e-mail within 24 hours of auction close. I reserve the right to offer the item to the next highest bidder or relist the item if the winning bidder does not respond within 2 days of this e-mail or otherwise make contact within 3 days after auction close, whichever is greater. Payments made by mail should be mailed within 5 days of auction close, and the buyer should notify me by e-mail the day the payment is mailed.





Priority Mail:
All states except Alaska & Hawaii: $15
Alaska & Hawaii: $18
Insurance (optional): $3.00

Shipment typically is made no later than the next day (excluding Sundays or postal holidays) following receipt of payment.



Guaranteed against DOA. 1 year warranty from manufacturer.
